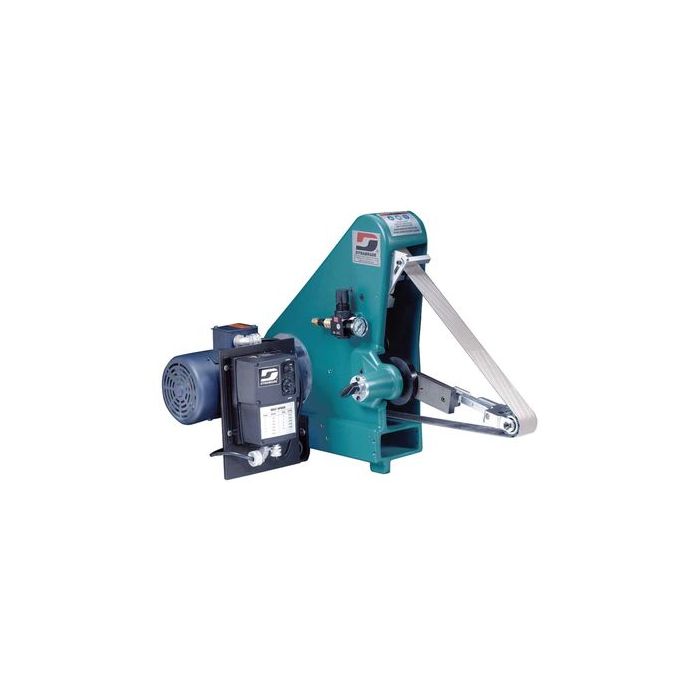

Dynabrade 64863 Variable Speed Versatility Grinder, Slack-Action
$7,019.30
In stock
SKU
DB64863
Variable Speed Versatility Grinder, Slack-Action
3 hp, 460 V (AC), 3 Phase, 50/60 Hz, 2,000-8,000 SFPM, 1/4"-2" W x 72" L (6-51 mm x 122 cm) Belts
3 hp, 460 V (AC), 3 Phase, 50/60 Hz, 2,000-8,000 SFPM, 1/4"-2" W x 72" L (6-51 mm x 122 cm) Belts
Details
- Machine offers simplified design that eliminates belt tension rollers to reduce maintenance costs.Design also allows greater use of abrasive belt slack areas. Operator has flexibility to finish workpiece on belt slack in a variety of positions, for optimum efficiency.
- Versatility Grinder powers 72" abrasive belts in widths from 1/4" to 2", to provide a wide variety of finishing solutions.Ideal for use on castings and forgings, turbine blades, medical implants, investment castings and more.
- Ideal for use on castings and forgings, turbine blades, medical implants, investment castings and more. Adjustable air belt tensioning provides constant control. Pivoting arm assembly for operator comfort.
- Unit has includes efficient through-housing 4" vacuum port for dust control with optional vacuum scoop (64932).
For the Dynabrade section
Click here
| Spec | Value |
|---|---|
| Abrasive Belt Size Inch (mm) | 1/4"(6,35) - 2" (50,8) x 72" (1828,8) |
| Voltage | 460 V (AC) |
| Phase | 3 |
| Frequency | 50/60 Hz |
| hp (W) | 1 (746) |
| Max. SFPM (SM/Min.) | 2,000-8,000 (510-2,440) |
| Length Inch (mm) | 33" (838) |
| Height Inch (mm) | 22" (559) |
| Sound Level dB(A) |  |
