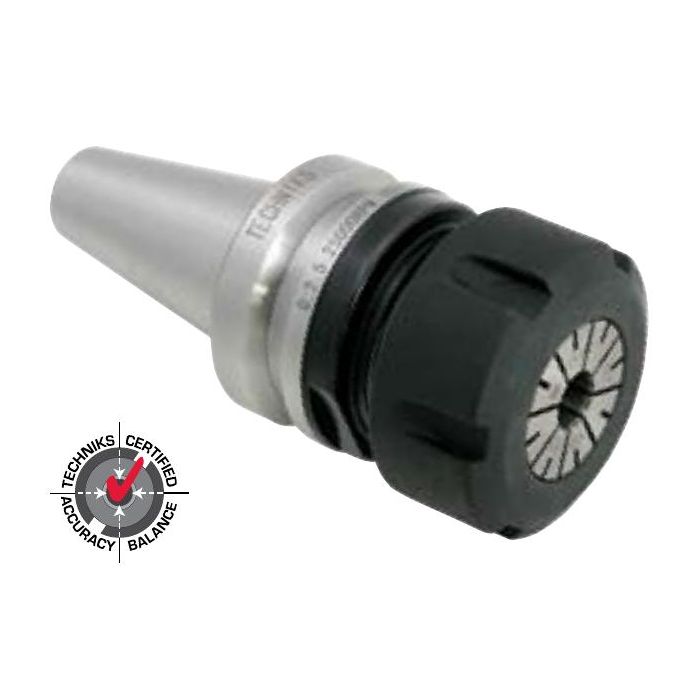

Techniks 16106-W BT30 x ER20 - 70 without slots
Techniks 16106-W BT30 x ER20 - 70 without slots
Features
• Balanced to 25,000 RPM at G2.5
• T.I.R. 0.0001" measured from taper to collet pocket
• PowerCOAT nut included for 75% more clamping power
Details
Product Specifications
UNSPSC Code 27112807 Collet Series ER20 Body Dia-Workpiece Side (in) 1.339 Body Dia-Workpiece Side (mm) 34 Gage Length (in) 2.76 Gage Length (mm) 70 Gage Length-Face Contact (in) 2.68 Gage Length-Face Contact (mm) 68 Lock Nut Diameter (in) 1.38 Lock Nut Diameter (mm) 35.1 Overall Length (in) 4.66 Overall Length (mm) 118.4 Material 8620 Steel Taper BT30 Overall Diameter (in) 1.81 Overall Diameter (mm) 46 Unit of Tool Metric or Inch Type V-Flange Collet Chuck Style Single Ended Capacity Range (in) 0.019" - 0.55" Capacity Range (mm) 0.5 - 14mm Balanced to 25,000 RPM at G2.5
More Information
More Information
Outside Diameter
34
