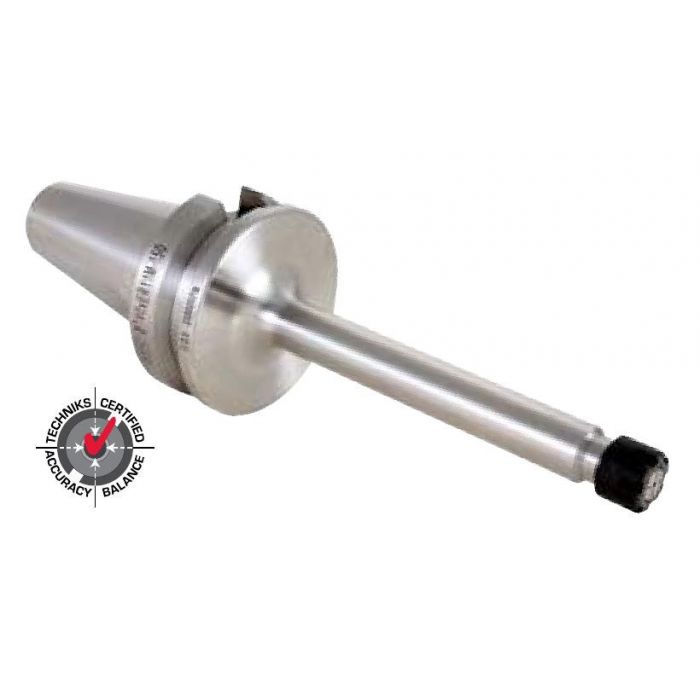

Techniks 16330 BT40 x ER20 - 100mm, mini nut
Techniks 16330 BT40 x ER20 - 100mm, mini nut
Features
• Balanced to 25,000 RPM at G2.5
• T.I.R. 0.0001" measured from taper to collet pocket
• Taper ground to AT3 accuracy or better
Details
Product Specifications
UNSPSC Code 27112807 Collet Series ER20 Body Dia-Workpiece Side (in) 1.339 Body Dia-Workpiece Side (mm) 34 Gage Length (in) 3.94 Gage Length (mm) 100 Gage Length-Face Contact (in) 3.86 Gage Length-Face Contact (mm) 98 Lock Nut Diameter (in) 1.38 Lock Nut Diameter (mm) 35.1 Overall Length (in) 6.51 Overall Length (mm) 165.4 Material 8620 Steel Taper BT40 Overall Diameter (in) 2.48 Overall Diameter (mm) 63 Unit of Tool Metric or Inch Type V-Flange Collet Chuck Style Single Ended Capacity Range (in) 0.019" - 0.55" Capacity Range (mm) 0.5 - 14mm Balanced to 25,000 RPM at G2.5
More Information
More Information
Outside Diameter
28mm
