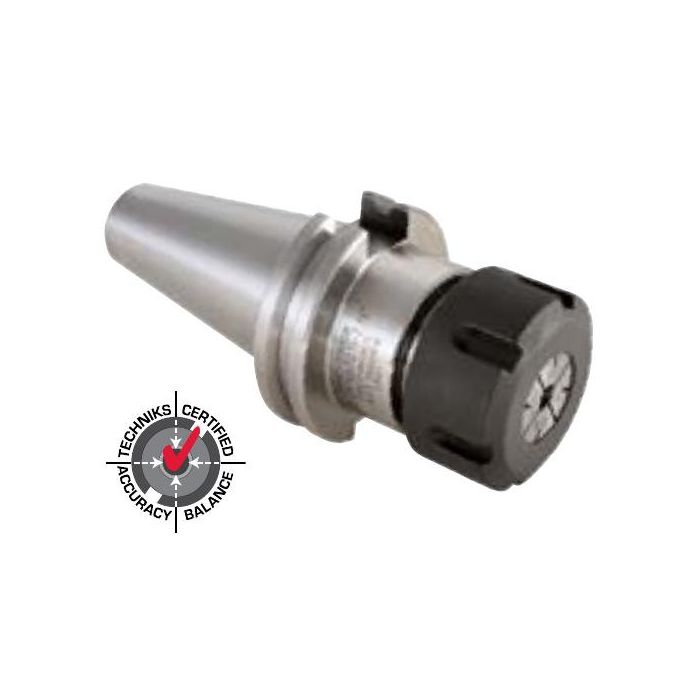

Techniks 23030 CAT50 x TG100 - 3"
Techniks 23030 CAT50 x TG100 - 3"
Features
• Balanced to 25,000 RPM at G2.5
• T.I.R. 0.0001" measured from taper to collet pocket
• PowerCOAT nut included for 75% more clamping power
Details
Product Specifications
UNSPSC Code 27112807 Collet Series TG100 Body Dia-Workpiece Side (in) 2.362 Body Dia-Workpiece Side (mm) 60 Gage Length (in) 3 Gage Length (mm) 76.2 Gage Length-Face Contact (in) 2.87 Gage Length-Face Contact (mm) 72.8 Lock Nut Diameter (in) 2.35 Lock Nut Diameter (mm) 59.7 Overall Length (in) 7.01 Overall Length (mm) 178.1 Material 8620 Steel Taper CAT50 Overall Diameter (in) 3.88 Overall Diameter (mm) 98.43 Unit of Tool Metric or Inch Type V-Flange Collet Chuck Style Single Ended Capacity Range (in) 0.094" - 1" Capacity Range (mm) 2.4 - 25.4mm Balanced to 25,000 RPM at G2.5
More Information
More Information
Outside Diameter
2.362"
